Pre-Filtration

pfs pre filters

PFS® Pre-Filters

PFS® Pre-Filters are comprised of synthetic nonwoven substrates, treated with proprietary fine and nanofibers to increase capturing efficiency of smaller size ranges of particles.

Typically installed upstream of high efficiency barrier filters, the right prefilter will trap a higher percentage of fine and coarse particles prolonging the life of the final filter.

Construction includes wire backed and glue bead supported pleated structures to stabilize pleat uniformity and maximize flow and dust loading capacity.

  • PFS-4™ – MERV 8 and MERV 11 filters with high capacity, wire supported pleat design with fine fiber treatment
  • Premier-Pleat™ – MERV 13 filters with high capacity, glue bead supported pleated design with nanofiber treatment



All PFS® Pre-Filters are provided in standard 2” and 4” depths. Custom sizes and depth are available upon request.

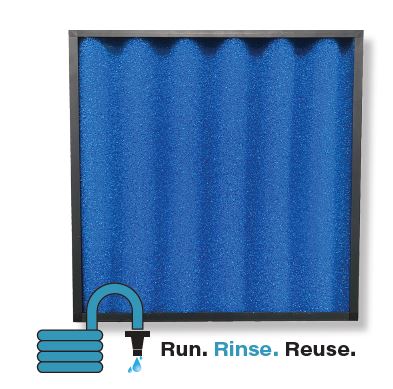

CLS® Coalescing Filters

CLS® Coalescing filters have been globally recognized to exhibit extraordinary level of durability and efficiency in the capture of mist and water droplets.

Manufactured with Synthetic fiber construction and stabilized with a down stream plastic screen and/or wire mesh, the two-piece CLS® system provides easy access for removal and installation of replacement elements.

  • MERV 6/M5
coalescing filters

Rigid Pocket Filters

Braden’s F5 and F6 rigid pocket filter is manufactured for extreme humid conditions and performs well in all types of air handling systems.

Manufactured with ultrasonic welded seams, the rigid filter is designed with spaces to stabilize the pocket shape.  Polyurethane header ensures a leak-proof bonding and provides corrosion resistance.

Braden Filtration Pocket Filters - Standard and Reverse Flow
